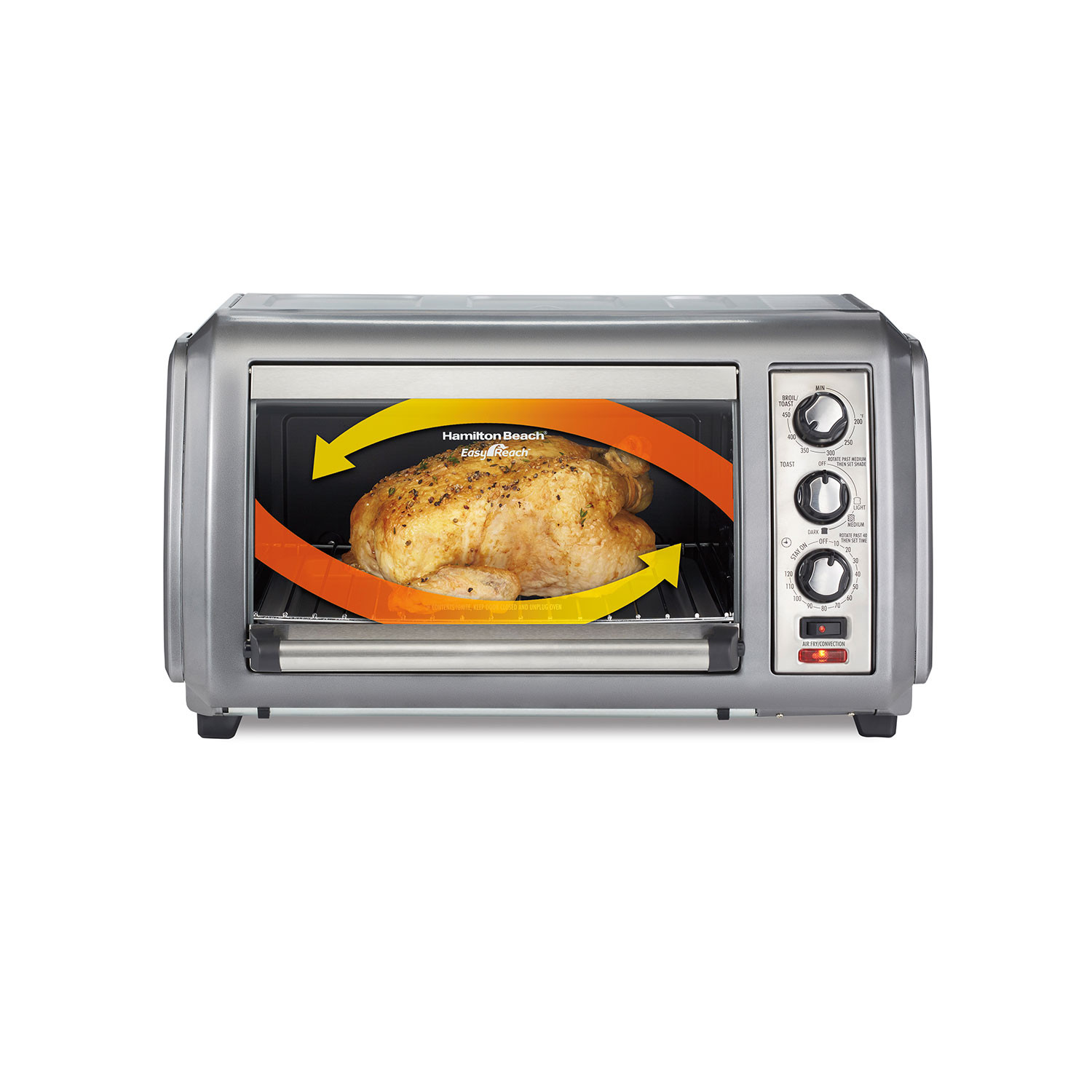

Hamilton Beach Sure-Crisp Air Fryer Countertop Toaster Oven with Easy Reach Door 31436 review

The Hamilton Beach Sure-Crisp Air Fryer Countertop Toaster Oven with Easy Reach Door, model 31436, is an earlier single-cavity oven built around a lift-up roll-top door and a manual Air Fry/Convection switch. The exact U.S. product page identifies model 31436 and says “NO LONGER AVAILABLE.” That is useful lifecycle context if you are comparing a clearly identified remaining or used unit; it does not promise current retailer stock or tell you what accessories a particular used oven still has.

The roll-top door changes counter access

Instead of swinging a hot door forward over the work area, the Easy Reach glass door lifts up and out of the way. Hamilton Beach says this makes food and the counter in front of the oven easier to access, and the manual says to add or remove food only when the door is lifted. The upward path is a real convenience when a pan or counter-edge workspace matters, but it also makes overhead room part of setup. Measure around the whole oven, including the space above the body for the door, plus room for the plug, hot trays and safe handling; the listed body dimensions are not a placement-clearance diagram.

The manufacturer lists a 21.3-inch width, 15.96-inch depth and 11.8-inch height. That is a wide body for a toaster oven, even before allowing operating room. If a strict counter limit is important, use the numeric width rather than a broad capacity label. The page does not publish cubic-foot capacity or internal measurements, so the size references should not be treated as proof that a particular pan, handle or dish clears the opening.

Air Fry, convection baking and the other manual routines

The product page names four cooking functions: Air Fry, Bake, Broil and Toast. The directly linked Use & Care guide identifies the base model as 31436 / Type O74 and shows one oven rack, three rack positions and a separate Air Fry/Convection switch. Air Fry uses forced hot air; the basket sits inside the baking/broiling pan on the oven rack. The guide also gives convection-baking advice, so the fan is not only a picture or marketing label. But the exact page lists four functions and the control is an Air Fry/Convection switch rather than a separately named Convection Bake preset. If your essential need is convection airflow during baking, the switch and manual support that use; if you require a distinct on-oven Convection Bake program, this model does not establish one.

All four jobs share one cavity. Three rack positions help position food; they are not separately controlled levels. There is no documented second oven zone, upright toaster slot, app control, Probe program, Dehydrate, Proof, Slow Cook, Grill plate or Rotisserie setting in this configuration. That distinction matters when comparing feature lists: a convection switch is not a second oven, and the supplied Air Fry basket does not create a second cooking area.

Useful fit examples, with limits

Hamilton Beach lists six slices of toast, a 12-inch pizza, a 9-by-13-inch pan and a chicken up to six pounds as separate fit examples. They describe different intended loads; they do not prove that all four fit at once, that every 9-by-13 pan has enough clearance, or that the cavity has a particular cubic-foot volume. If you care about a specific casserole or baking pan, compare its outside dimensions and handles with the usable opening rather than relying on toast capacity. A hard minimum-volume question should fail closed here because no cubic-foot figure is published.

For Air Fry, the guide directs you to arrange food in one even layer, avoid overfilling the basket and keep food at least one inch from heating elements. It recommends a five-minute preheat and notes that thicker or larger pieces may need turning or stirring halfway through. These are practical setup instructions, not independent performance measurements. The manual’s convection tips let you shorten bake time at the same temperature or lower the temperature by about 25°F for the same duration; monitor the food rather than assuming a countertop oven will behave like your full-size oven.

Controls, cleanup and electrical planning

The exact product page lists a 120-minute timer, auto shutoff, Stay On setting and separate toasting timer. The guide’s controls include a temperature dial, toast-shade dial, timer and Air Fry/Convection switch. This is a straightforward manual-control setup, not digital recipe automation. Hamilton Beach also advertises faster reheating and lower energy use versus a conventional oven for a specific frozen-nugget reheating comparison; that is a manufacturer-stated comparison, not an independent test result.

The page lists a mesh Air Fry basket, bake pan, broil rack and removable crumb tray; the manual’s parts diagram names an oven rack, baking/broiling pan, basket and slide-out crumb tray. Verify that a particular used unit includes the needed pieces. The manual says to unplug and cool the oven before cleaning, hand-wash the removable pieces, wipe the cavity and glass, and keep the crumb tray in place. It warns not to leave the oven unattended and to leave at least an inch between food and a heating element. The Type O74 rating panel specifies 120 V, 60 Hz and 1,500 W. Its U.S. limited warranty is one year under the printed terms; that does not establish remaining coverage on an older unit.

Consider 31436 if the upward-opening Easy Reach door and an Air Fry routine are worth accommodating a 21.3-inch-wide body, and the six-slice, 12-inch-pizza or 9-by-13-inch-pan references match your usual jobs. If width matters more than the roll-top door, compare the narrower Hamilton Beach 31413 assessment: it also documents Air Fry and six-slice / 12-inch-pizza references, but it has a different door and exact model identity. For either earlier oven, check the appliance label, condition, accessories and seller’s terms; do not assume a similar name means the same fit, package or manual.

Sources: Hamilton Beach’s exact model 31436 product page and its directly linked Use & Care guide 840346400.
